StandOffs

Thread Size Hole Size In Material (In) Coating Type Length Of Hardware Aluminum Material Thickness Ranges Steel Material Thickness Ranges
4-40 0.168 Zinc/Passivated 0.250 0.040 - 0.125 0.048 - 0.119
M3 x 0.5 0.166 Zinc/Passivated 0.236 0.040 - 0.111 0.048 - 0.104
4-40 0.168 Zinc/Passivated 0.375 0.040 - 0.250 0.048 - 0.250
4-40 0.168 Zinc/Passivated 0.500 0.040 - 0.250 0.048 - 0.250
6-32 0.215 Zinc/Passivated 0.250 0.040 - 0.125 0.048 - 0.119
6-32 0.215 Zinc/Passivated 0.375 0.040 - 0.250 0.048 - 0.250
6-32 0.215 Zinc/Passivated 0.500 0.040 - 0.375 0.048 - 0.375
6-32 0.213 Passivated 0.625 0.048 - 0.500 0.060 - 0.500
8-32 0.281 Zinc/Passivated 0.250 0.063 - 0.125 0.059 - 0.119
8-32 0.281 Zinc/Passivated 0.375 0.063 - 0.250 0.059 - 0.250
8-32 0.281 Zinc/Passivated 0.500 0.063 - 0.375 0.059 - 0.375
10-32 0.281 Zinc/Passivated 0.250 0.063 - 0.125 0.059 - 0.119
10-32 0.281 Zinc/Passivated 0.375 0.063 - 0.250 0.059 - 0.250
10-32 0.281 Zinc/Passivated 0.500 0.063 - 0.375 0.059 - 0.375
M3 x 0.5 0.166 Zinc/Passivated 0.394 0.040 - 0.250 0.048 - 0.250
M3 x 0.5 0.166 Zinc/Passivated 0.472 0.040 - 0.250 0.048 - 0.250
M4 x 0.7 0.281 Zinc/Passivated 0.236 0.063 - 0.100 0.059 - 0.104
M4 x 0.7 0.281 Zinc/Passivated 0.394 0.063 - 0.250 0.059 - 0.250
M4 x 0.7 0.281 Zinc/Passivated 0.472 0.063 - 0.250 0.059 - 0.250
M5 x 0.8 0.281 Zinc/Passivated 0.236 0.063 - 0.100 0.059 - 0.104
M5 x 0.8 0.281 Zinc/Passivated 0.394 0.063 - 0.250 0.059 - 0.250
M5 x 0.8 0.281 Zinc/Passivated 0.472 0.063 - 0.250 0.059 - 0.250

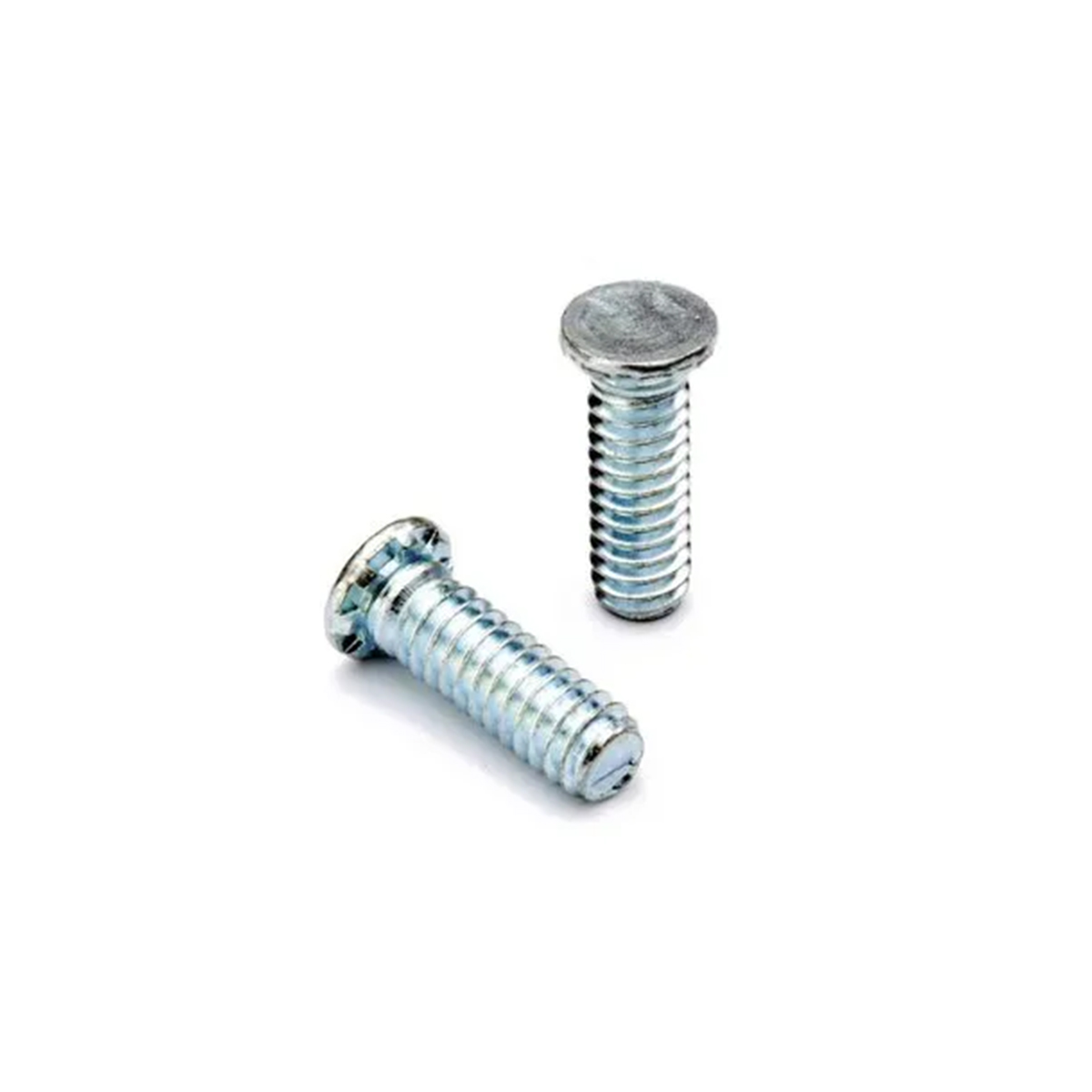

Studs

Thread Size Hole Size In Material (In) Coating Type Length Of Hardware Aluminum Material Thickness Ranges Steel Material Thickness Ranges
4-40 0.113 Zinc/Passivated 0.250 0.040 - 0.125 0.048 - 0.119
M3 x 0.5 0.121 Zinc/Passivated 0.236 0.040 - 0.100 0.048 - 0.104
M8 x 1.25 0.315 Zinc/Passivated 0.984 0.100 - 0.500 0.104 - 0.500
4-40 0.113 Zinc/Passivated 0.375 0.040 - 0.250 0.048 - 0.250
4-40 0.113 Zinc/Passivated 0.500 0.040 - 0.250 0.048 - 0.250
4-40 0.113 Zinc/Passivated 0.625 0.040 - 0.250 0.048 - 0.250
6-32 0.139 Zinc/Passivated 0.250 0.040 - 0.125 0.048 - 0.119
6-32 0.139 Zinc/Passivated 0.375 0.040 - 0.250 0.048 - 0.250
6-32 0.139 Zinc/Passivated 0.500 0.040 - 0.375 0.048 - 0.250
6-32 0.139 Zinc/Passivated 0.625 0.040 - 0.375 0.048 - 0.250
8-32 0.165 Zinc/Passivated 0.250 0.040 - 0.125 0.048 - 0.119
8-32 0.165 Zinc/Passivated 0.375 0.040 - 0.250 0.048 - 0.250
8-32 0.165 Zinc/Passivated 0.500 0.040 - 0.375 0.048 - 0.250
8-32 0.165 Zinc/Passivated 0.625 0.040 - 0.375 0.048 - 0.250
10-32 0.191 Zinc/Passivated 0.375 0.040 - 0.250 0.048 - 0.250
10-32 0.191 Zinc/Passivated 0.500 0.040 - 0.375 0.048 - 0.375
10-32 0.191 Zinc/Passivated 0.625 0.063 - 0.375 0.059 - 0.375
10-32 0.191 Zinc/Passivated 0.750 0.063 - 0.375 0.059 - 0.375
1/4-20 0.251 Zinc/Passivated 0.375 0.040 - 0.250 0.048 - 0.250
1/4-20 0.251 Zinc/Passivated 0.500 0.060 - 0.375 0.060 - 0.375
1/4-20 0.251 Zinc/Passivated 0.750 0.040 - 0.500 0.048 - 0.500
1/4-20 0.249 Passivated 1.000 0.060 - 0.250 0.060 - 0.250
M3 x 0.5 0.121 Zinc/Passivated 0.315 0.040 - 0.187 0.048 - 0.187
M3 x 0.5 0.121 Zinc/Passivated 0.393 0.040 - 0.250 0.048 - 0.250
M3 x 0.5 0.121 Zinc/Passivated 0.472 0.040 - 0.250 0.048 - 0.250
M4 x 0.7 0.159 Zinc/Passivated 0.236 0.040 - 0.100 0.048 - 0.104
M4 x 0.7 0.159 Zinc/Passivated 0.315 0.040 - 0.187 0.048 - 0.187
M4 x 0.7 0.159 Zinc/Passivated 0.393 0.040 - 0.250 0.048 - 0.250
M4 x 0.7 0.159 Zinc/Passivated 0.472 0.040 - 0.250 0.048 - 0.250
M5 x 0.8 0.198 Zinc/Passivated 0.315 0.040 - 0.187 0.048 - 0.187
M5 x 0.8 0.198 Zinc/Passivated 0.393 0.040 - 0.250 0.048 - 0.250
M6 x 1 0.236 Zinc/Passivated 0.472 0.040 - 0.250 0.048 - 0.250
M6 x 1 0.236 Zinc/Passivated 0.787 0.063 - 0.500 0.074 - 0.500
M8 x 1.25 0.315 Zinc/Passivated 0.472 0.100 - 0.250 0.104 - 0.250

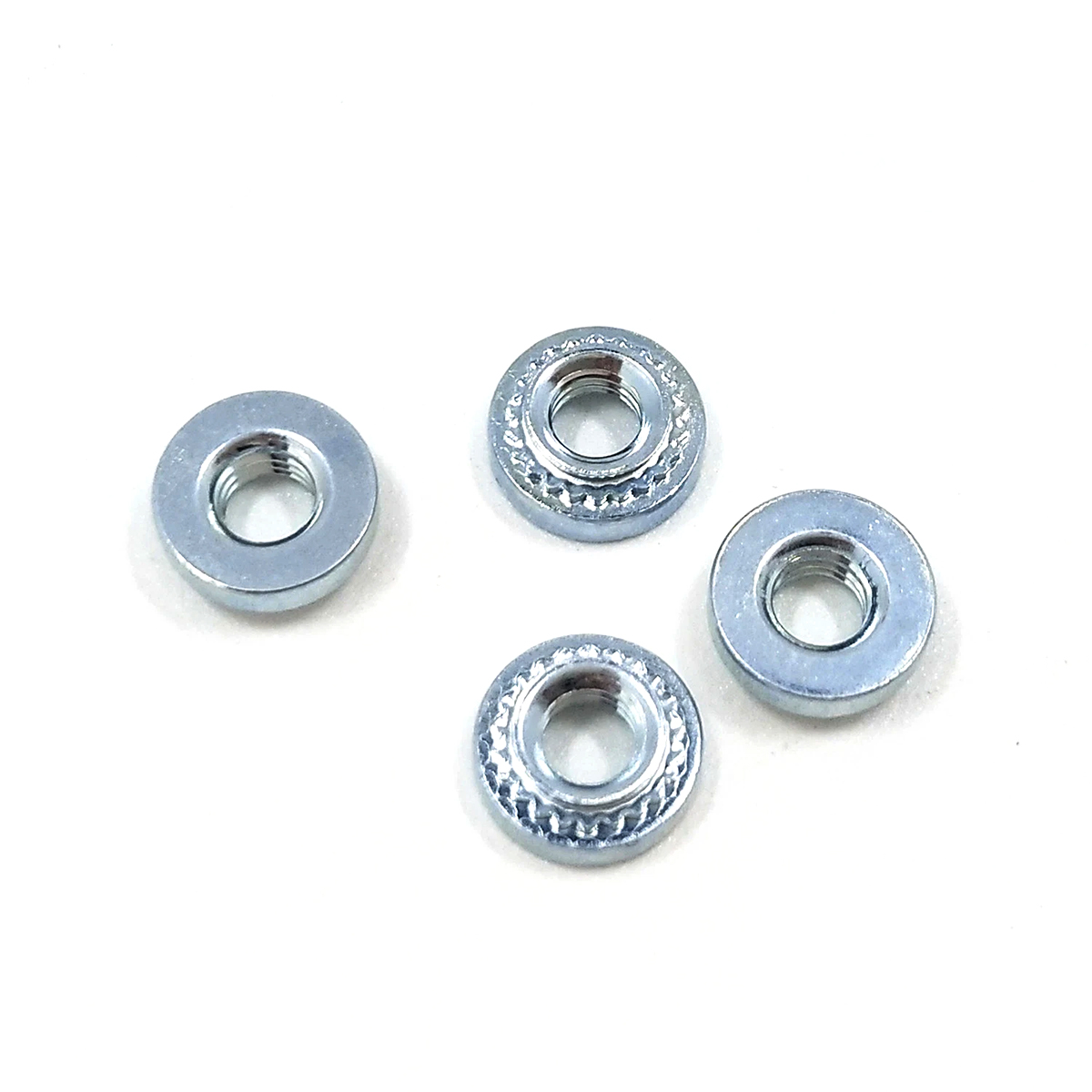

Nuts

Thread Size Hole Size In Material (In) Coating Type Length Of Hardware Aluminum Material Thickness Ranges Steel Material Thickness Ranges
4-40 0.166 Zinc/Passivated 0.070 0.040 - 0.500 0.048 - 0.375
6-32 0.187 Zinc/Passivated 0.070 0.040 - 0.500 0.048 - 0.375
8-32 0.213 Zinc/Passivated 0.090 0.040 - 0.500 0.048 - 0.375
10-32 0.250 Zinc/Passivated 0.090 0.040 - 0.500 0.048 - 0.375
1/4-20 0.344 Zinc/Passivated 0.161 0.063 - 0.500 0.059 - 0.375
5/16-18 0.413 Zinc/Passivated 0.230 0.063 - 0.500 0.059 - 0.375
3/8-16 0.500 Zinc/Passivated 0.270 0.090 - 0.500 0.104 - 0.375
M3 x .05 0.168 Zinc/Passivated 0.059 0.040 - 0.500 0.048 - 0.375
M4 x .07 0.212 Zinc/Passivated 0.079 0.040 - 0.500 0.048 - 0.375
M5 x .08 0.251 Zinc/Passivated 0.079 0.040 - 0.500 0.048 - 0.375
M6 x 1 0.345 Zinc/Passivated 0.161 0.063 - 0.500 0.048 - 0.375
M8 x 1.25 0.413 Zinc/Passivated 0.161 0.063 - 0.500 0.059 - 0.375

Materials Available for Hardware Insertion

5052 Aluminum

5052 Aluminum
6061 Aluminum

6061 Aluminum
7075 Aluminum

7075 Aluminum
Mild Steel

Mild Steel
304 Stainless Steel

304 Stainless Steel
316 Stainless Steel

316 Stainless Steel
G90 Steel

G90 Steel

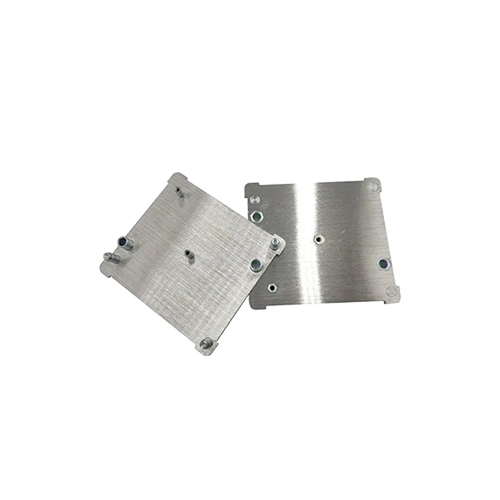

What to expect from your CraftCutCreate hardware installation

  • Use hardware only for its designated purpose to avoid shearing, splitting, and warping.
  • Incorrect use of hardware can lead to failure. Refer to the hardware catalog for design requirements.
  • Tooling marks may be present on the part's surface.
  • Hardware is installed post-anodizing and plating.
  • For powder-coated parts, hardware will be capped or plugged.
